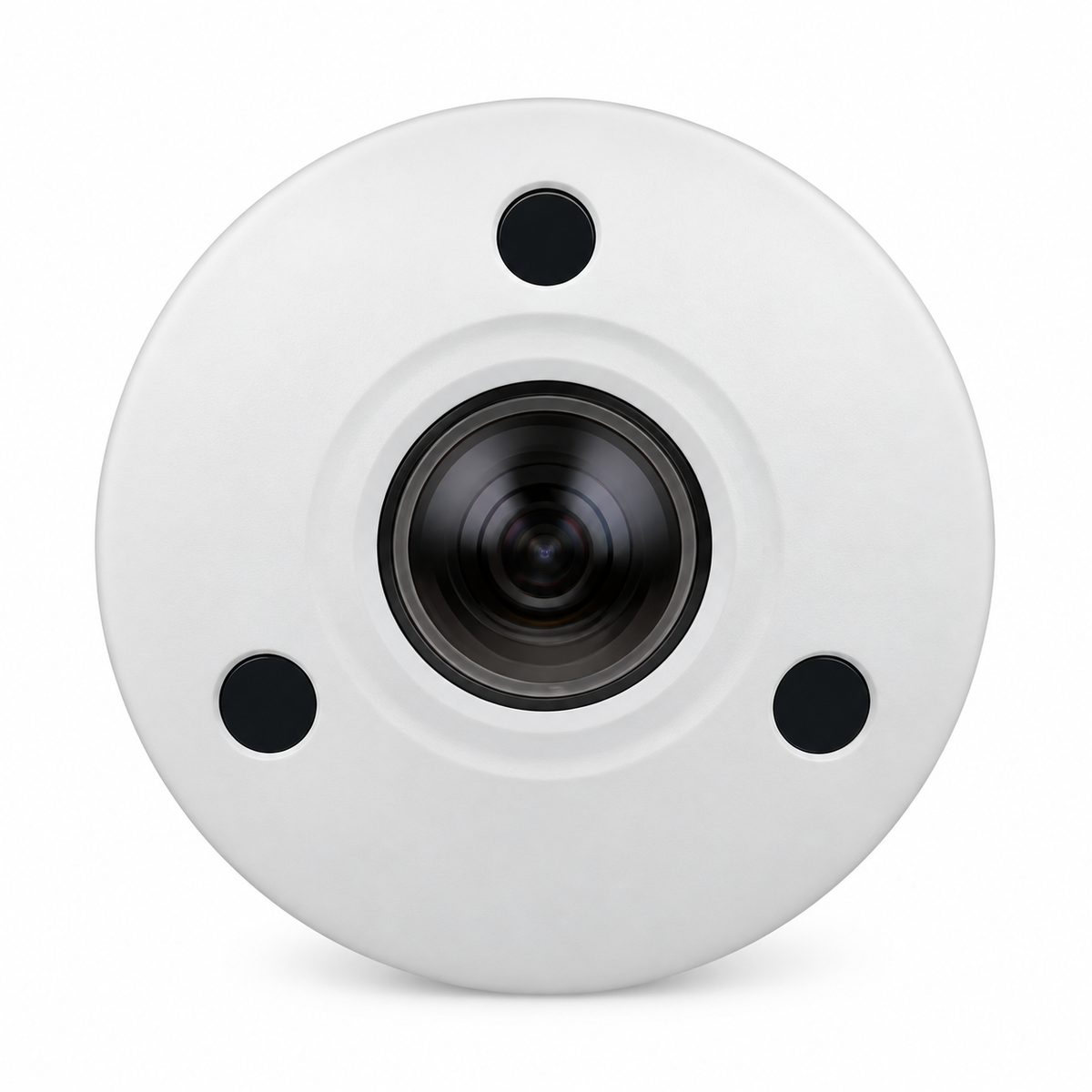

Montavue Nexus 12MP 360° Fisheye Camera

Complete 360° Coverage From a Single Surveillance Camera

The MNF-12-201 Montavue Nexus 12MP fisheye camera delivers ultra-high-resolution surveillance with a panoramic 360-degree field of view. Its ultra-wide fisheye lens can monitor large areas from a single mounting position, helping reduce blind spots and the number of cameras required for complete coverage.

Designed for demanding indoor and outdoor surveillance applications, the camera combines infrared night vision, intelligent perimeter protection, two-way audio, vandal-resistant construction, and weather-resistant protection.

Key Features

• 12MP ultra-high-resolution surveillance video
• Panoramic 360° fisheye field of view
• Digital dewarping with multiple viewing modes
• Infrared night vision up to 50 feet
• Smart motion detection
• Perimeter-protection analytics
• Digital tripwire and intrusion-zone monitoring
• Built-in two-way audio
• PoE network connection
• Rugged metal housing
• IK10 vandal-resistant rating
• IP67 weather-resistant rating
• Operating-temperature range from approximately -22°F to 140°F
• Compatible Montavue Nexus mobile and remote access
• No required monthly subscription for compatible local NVR recording
• Supplier-designated NDAA-compliant model

Ideal Applications

• Retail stores
• Restaurants and hospitality venues
• Warehouses
• Offices and reception areas
• Building entrances
• Open commercial spaces
• Hallway intersections
• Schools and institutional facilities
• Indoor and protected outdoor locations
• Locations requiring wide-area monitoring with fewer cameras

Compatibility

• Compatible Montavue Nexus network video recorders
• Compatible PoE network infrastructure
• Montavue Nexus mobile and desktop access
• Requires a compatible NVR for recording and full system operation

Important Notice

This is an NVR-dependent PoE surveillance camera and is not intended to operate as a standalone Wi-Fi camera. Confirm NVR compatibility, available PoE capacity, network bandwidth, recording resolution, and storage requirements before ordering.

For federal or public-sector purchases, retain the manufacturer’s current NDAA and Section 889 documentation with the procurement record. Do not rely solely on the product-page compliance graphic.

Reliable 24/7 Storage for Video Surveillance Systems

This surveillance-grade 3.5-inch SATA III internal hard drive is engineered for the continuous recording demands of compatible network video recorders. Available in multiple capacities, it provides dependable video storage for residential, commercial, and professional surveillance systems.

Designed for high-write workloads, the drive supports continuous 24/7 recording and surveillance systems with up to 64 cameras, depending on the NVR configuration, recording resolution, frame rate, compression settings, and retention requirements.

Key Features

• Surveillance-optimized 3.5-inch internal hard drive
• SATA III interface
• Designed for continuous 24/7 video recording
• Available in capacities from 1TB through 20TB
• Supports surveillance systems with up to 64 cameras
• Supports configurations using one to eight hard drives
• Engineered for workloads of up to 180TB per year
• Up to 256MB cache memory
• Transfer speeds of up to 180 MB/s
• Low power consumption and reduced startup current
• Designed to minimize heat, vibration, and long-term drive wear
• Customizable power settings for reduced consumption during system downtime

Compatibility

• Compatible network video recorders with an available 3.5-inch SATA drive bay
• Residential and commercial NVR surveillance systems
• New NVR installations
• Compatible storage-expansion projects
• H.265 surveillance recording systems, subject to recorder compatibility

Important Compatibility Notice

The 20TB hard-drive option is compatible only with designated MNR5- and MNR6-series NVRs. Confirm the recorder’s maximum supported storage capacity, available drive bays, and hard-drive compatibility before ordering.

Installation Notice

Installation requires a compatible NVR with an available internal hard-drive bay, SATA data connection, and power connection. Mounting screws, SATA cables, and power cables may not be included with a standalone hard drive.

Storage duration varies according to camera quantity, recording resolution, frame rate, compression format, motion-recording settings, and recording schedule. Professional installation is recommended when expanding an existing surveillance system.

Reliable 24/7 Storage for Video Surveillance Systems

This surveillance-grade 3.5-inch SATA III internal hard drive is engineered for the continuous recording demands of compatible network video recorders. Available in multiple capacities, it provides dependable video storage for residential, commercial, and professional surveillance systems.

Designed for high-write workloads, the drive supports continuous 24/7 recording and surveillance systems with up to 64 cameras, depending on the NVR configuration, recording resolution, frame rate, compression settings, and retention requirements.

Key Features

• Surveillance-optimized 3.5-inch internal hard drive
• SATA III interface
• Designed for continuous 24/7 video recording
• Available in capacities from 1TB through 20TB
• Supports surveillance systems with up to 64 cameras
• Supports configurations using one to eight hard drives
• Engineered for workloads of up to 180TB per year
• Up to 256MB cache memory
• Transfer speeds of up to 180 MB/s
• Low power consumption and reduced startup current
• Designed to minimize heat, vibration, and long-term drive wear
• Customizable power settings for reduced consumption during system downtime

Compatibility

• Compatible network video recorders with an available 3.5-inch SATA drive bay
• Residential and commercial NVR surveillance systems
• New NVR installations
• Compatible storage-expansion projects
• H.265 surveillance recording systems, subject to recorder compatibility

Important Compatibility Notice

The 20TB hard-drive option is compatible only with designated MNR5- and MNR6-series NVRs. Confirm the recorder’s maximum supported storage capacity, available drive bays, and hard-drive compatibility before ordering.

Installation Notice

Installation requires a compatible NVR with an available internal hard-drive bay, SATA data connection, and power connection. Mounting screws, SATA cables, and power cables may not be included with a standalone hard drive.

Storage duration varies according to camera quantity, recording resolution, frame rate, compression format, motion-recording settings, and recording schedule. Professional installation is recommended when expanding an existing surveillance system.
